Feedstock ready to press for uniaxial and isostatic pressing for the production of oxide ceramic bodies such as grinding media, insulating and wear-resistant parts, etc.

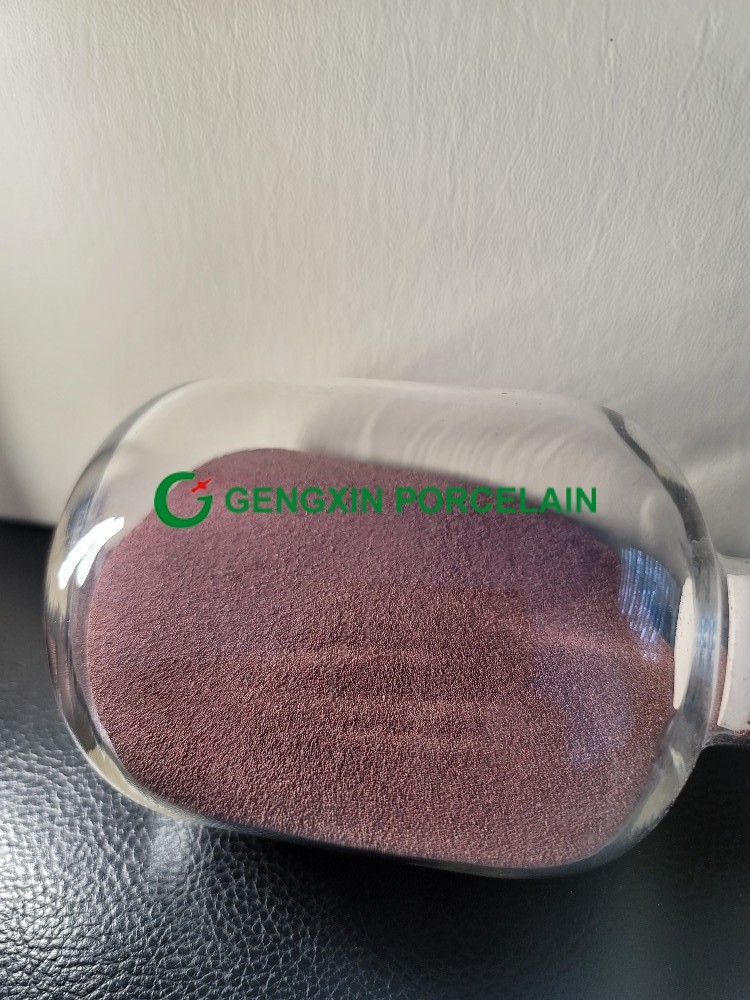

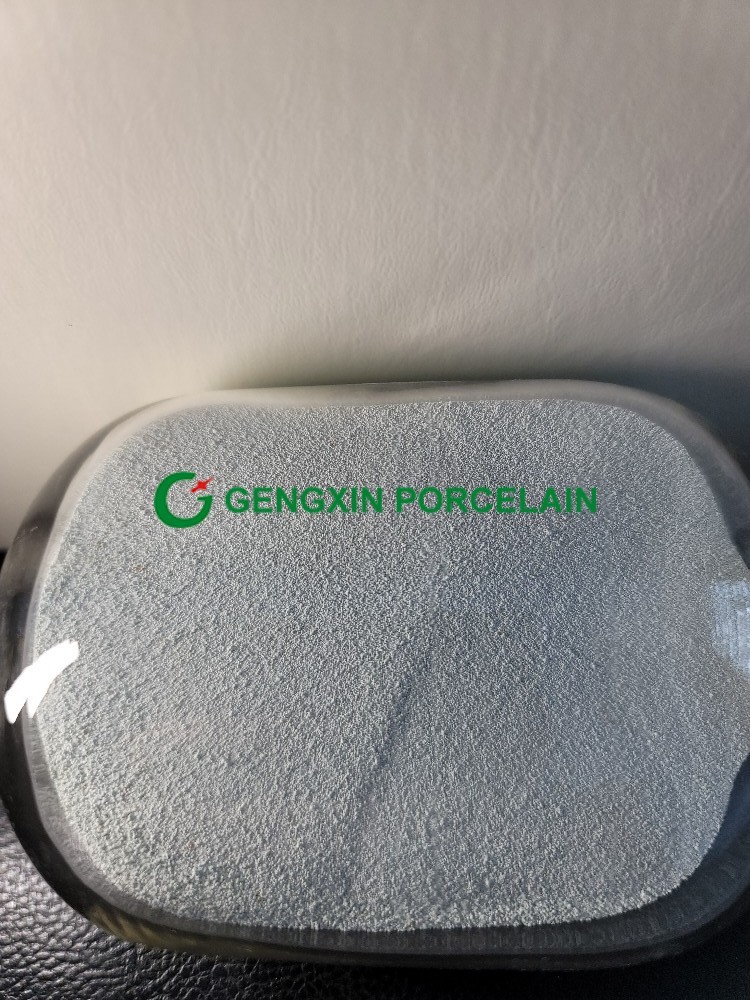

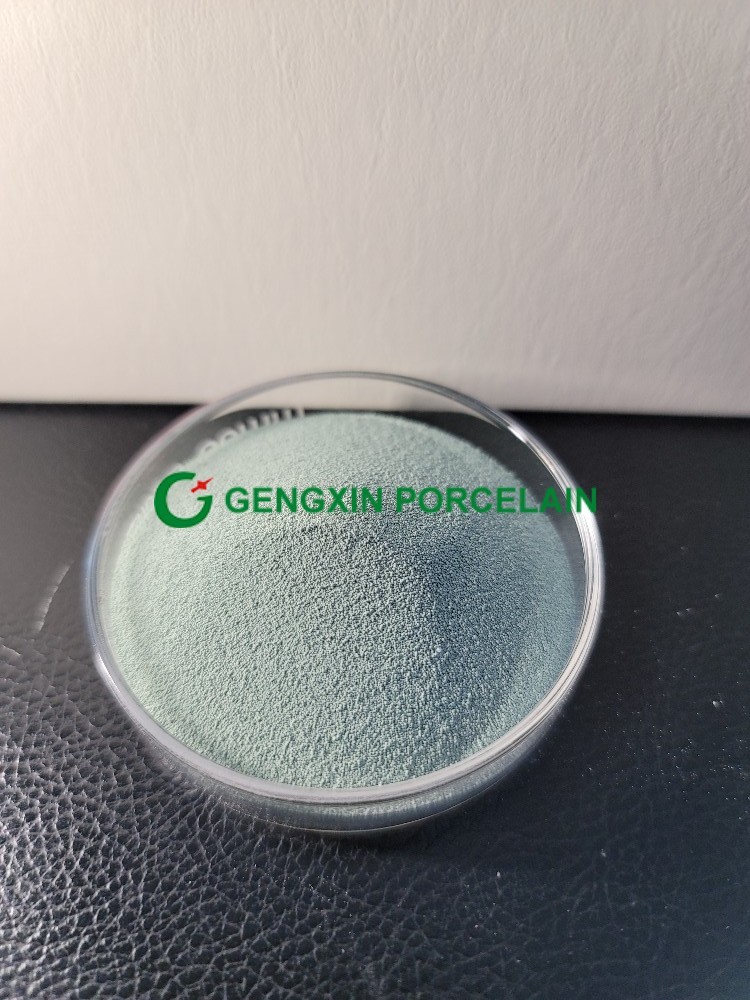

Spray-Dried Alumina Granules for dry pressing and isostatic pressing
Feedstock ready to press for uniaxial and isostatic pressing for the production of oxide ceramic bodies such as grinding media, insulating and wear-resistant parts, etc.
S95 | S98 | S99 | S90 | |
Al2O3 % ① | ≈95 | ≈98 | ≈99 | ≈90 |
Bulk Density g/cm3 | 1.0-1.1 | 0.95-1.05 | 1.0-1.1 | |
moisture % | 0.4±0.1;0.6±0.1;0.9±0.1 | |||
Particle size distribution 目 | 60-250;中心径140 | |||
Al2O3grain sizeμm | 2-3 | 1.0±0.2 | 0.6±0.2 | 1.0±0.2 |
angle of repose | ≤30 | |||
loss on ignition % | ＜4.0 | |||
Sintering temperature ℃ ② | 1580 | 1620 | 1430 | |
hold time H | 2.5 | |||
Porcelain density g/cm3 | ≥3.70 | ≥3.85 | ≥3.90 | ≥3.85 |
average shrinkage % ③ | 17-18 | 21±1 | 22±1 | 21±1 |

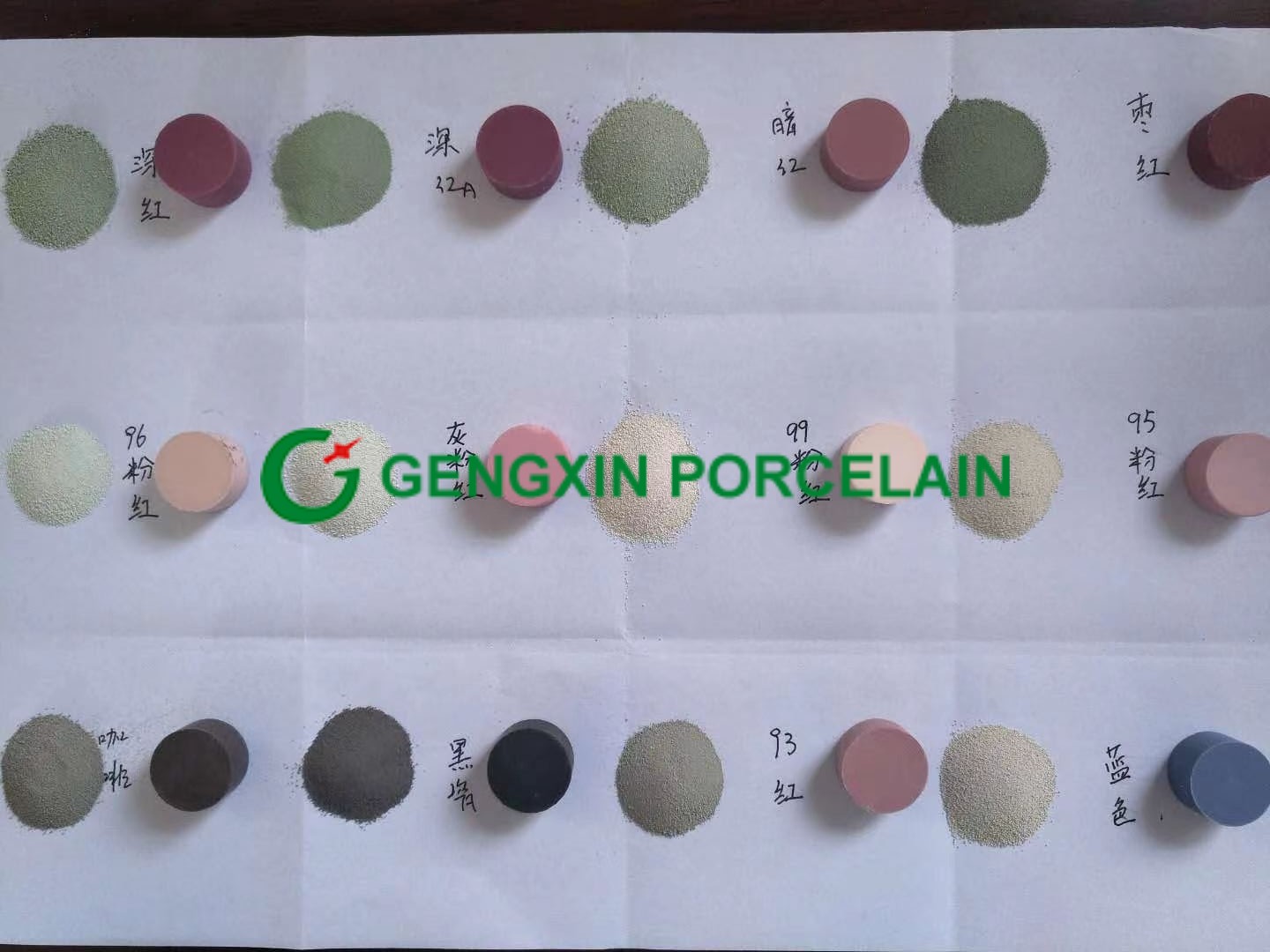

Porcelain | Color code | 98 red | 99 red | black |
Scope of application | Textile porcelain, structural porcelain, seals, wear-resistant parts, acid and alkali resistant porcelain parts | |||
The above data are all measured under experimental conditionsφ22mm weight 10g pressure 80MPa.
Die oben genannten Werte sind nur als Richtwerte zu verstehen und nicht etwa als zugesicherte Eigenschaften. The above mentioned values should be taken only as indications and not as guaranteed properties.
