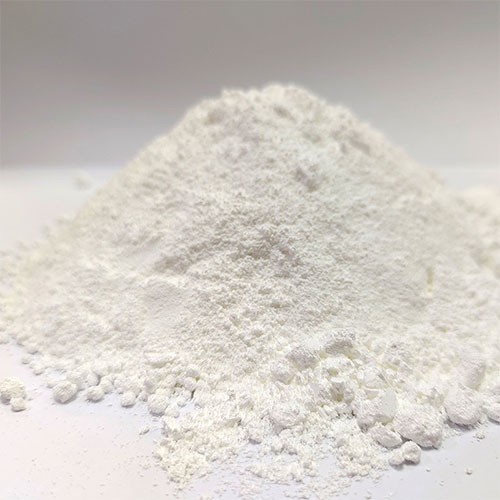

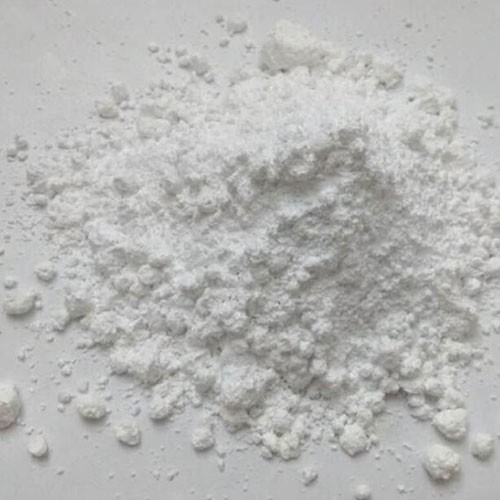

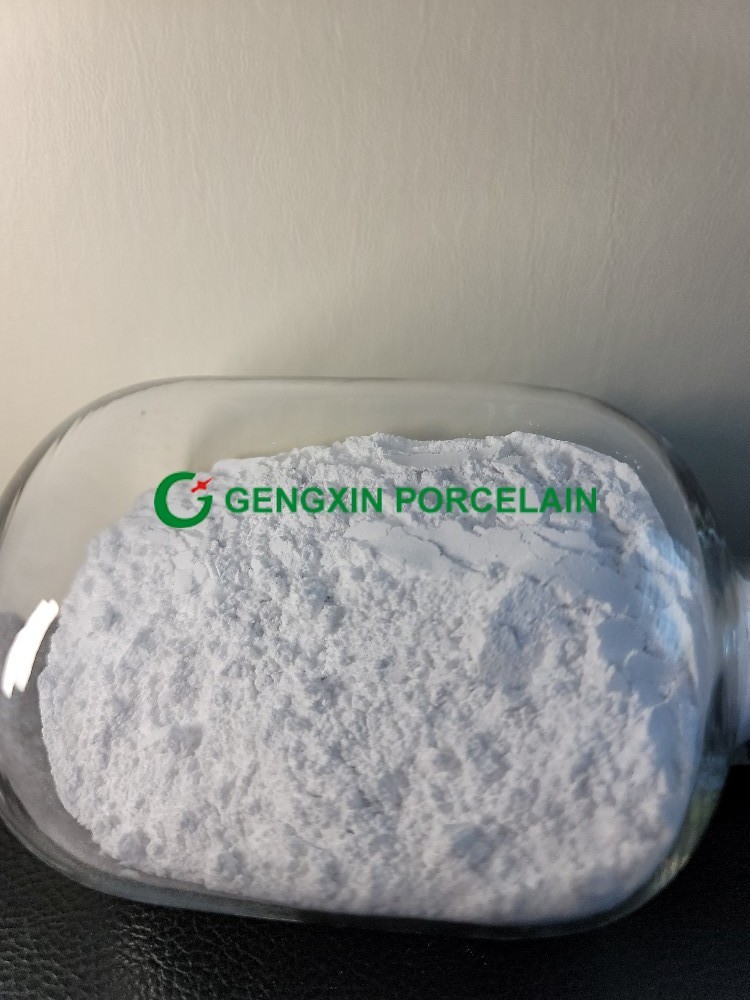

Alumina micro powder series

Feedstock ready to press for uniaxial and isostatic pressing for the production of oxide ceramic bodies such as grinding media, insulating and wear-resistant parts, etc.

Spray-Dried Alumina Granules for dry pressing and isostatic pressing

Feedstock ready to press for uniaxial and isostatic pressing for the production of oxide ceramic bodies such as grinding media, insulating and wear-resistant parts, etc.

	W2.5	W1.5-1	W1.5-2	W1.0	W0.6
Al2O3%	≥99.8	≥99.7	≥99.5	≥99.6	≥99.5
Na2O%	≤0.05	≤0.1	≤0.25	≤0.1	≤0.2
Fe2O3%	≤0.03	≤0.05	≤0.1	≤0.05	≤0.05
αPhase inversion%	≥97	≥95	≥93	≥95	≥95
Center particle sizeD50μ	2.5±0.5	1.5±0.5		1.0±0.2	0.6±0.2
moisture%	＜0.03
Pseudo particle size 目	Center diameter approx.160
use	Electronic ceramics, structural ceramics, advanced refractories		Wear-resistant, sealed ceramic, refractory	Electronic ceramic structure ceramic advanced refractory	Highly active materials, electronics, structural ceramics

The above data are all measured under experimental conditionsφ22mm weight 10g pressure 80MPa.

Die oben genannten Werte sind nur als Richtwerte zu verstehen und nicht etwa als zugesicherte Eigenschaften. The above mentioned values should be taken only as indications and not as guaranteed properties.
